DisplayPort Cable Lengths: What Control Room and Trading Floor Setups Need to Know

If you're building a setup that requires connecting your PC to multiple monitors, knowing the maximum cable length for your DisplayPort connection is crucial. If its too long, you may encounter issues such as signal degradation which can either cause a monitor display to flicker or even loss the signal altogether. This blog post will guide you through all you need to know about DisplayPort cable lengths, so you can achieve the best performance without compromising on quality.

What is DisplayPort?

DisplayPort is a high-bandwidth digital interface that connects monitors to computers. It offers support for high resolutions, fast refresh rates, and multiple monitors. DisplayPort also supports monitor daisy chaining where multiple monitors can be connected via one single cable from the PC. With its robust data transmission capabilities, DisplayPort is the preferred solution for trading floor and control room workstations. But just like any cable, there's a limit to how long a DisplayPort cable can be before performance starts to decline.

Why DisplayPort Matters in Multi-Monitor Workspaces

Before we dig into cable lengths, it's worth understanding why DisplayPort is the gold standard for professional workspaces:

High Bandwidth: Supports 4K, 5K, and even 8K displays depending on the version (DP 1.2, 1.4, 2.0).
Multi-Stream Transport (MST): This lets you daisy-chain multiple monitors from a single DP port.
Low Latency: Critical for real-time monitoring and trading.
Locking Mechanism: Reduces accidental disconnections – especially useful on sit-stand desks.
Daisy Chaining: Reduces the number of cables required for a multiple monitor setup.

But all these features are only useful if the cable connecting your monitors is up to the task.

The Role of Cable Length in DisplayPort Performance

Several factors determine the maximum length a DisplayPort cable can reach while maintaining a stable connection:

- DisplayPort Version: The latest DisplayPort versions, such as DisplayPort 1.4 and 2.0, support higher bandwidths, allowing for longer cables without compromising signal quality. For instance, DisplayPort 1.2 might have a more limited reach compared to DisplayPort 1.4 at similar resolutions and refresh rates.

- Cable Quality: Premium cables with better shielding and higher-grade materials can transmit signals over longer distances. They minimise electromagnetic interference, ensuring a stable connection over extended lengths.

- Resolution and Refresh Rate: Higher resolutions and refresh rates require more bandwidth, making it more challenging for signals to maintain their integrity over long distances. For example, a cable that can transmit 4K at 60Hz over 2 metres may struggle to do so over 5 metres without experiencing signal issues, such as flickering or loss of connection.

Standard DisplayPort Cable Lengths

The recommended maximum length of a DisplayPort cable varies depending on the DisplayPort version and the resolution or refresh rate you plan to use:

Standard Cable Length: For most DisplayPort cables, a length of up to 1.8 metres is usual for guaranteed performance at high resolutions and refresh rates, such as 4K at 60Hz or 1440p at 144Hz.
Extended Length: With higher-quality cables, it's possible to extend the length up to 5 metres while still supporting 4K resolutions at lower refresh rates, like 60Hz. However, beyond this length, you might start to experience signal degradation, especially with demanding multi screen setups.

Active or Passive DisplayPort Cable?

Passive Cables are standard cables that don't amplify the signal. They work well at short distances (usually under 2 meters for 4K).
Active Cables contain a built-in chip that amplifies the signal and are great for longer runs, often needed in control room desks or trading floor layouts where PCs are located away from the monitors. Active DisplayPort cables are capable of maintaining a 4K resolution over distances of 5 to 10 metres.

Practical Considerations for Adjustable Desks

Height-adjustable trading or control room desks with PCs that do not rise with the desk add another layer of complexity. These desks types require cable lengths of +5 metres. This coupled with 4-6 high resolution monitors could cause signal degradation.

Key Recommendations:

Add at least 0.5 meters of slack beyond the measured distance between the PC and the monitor.

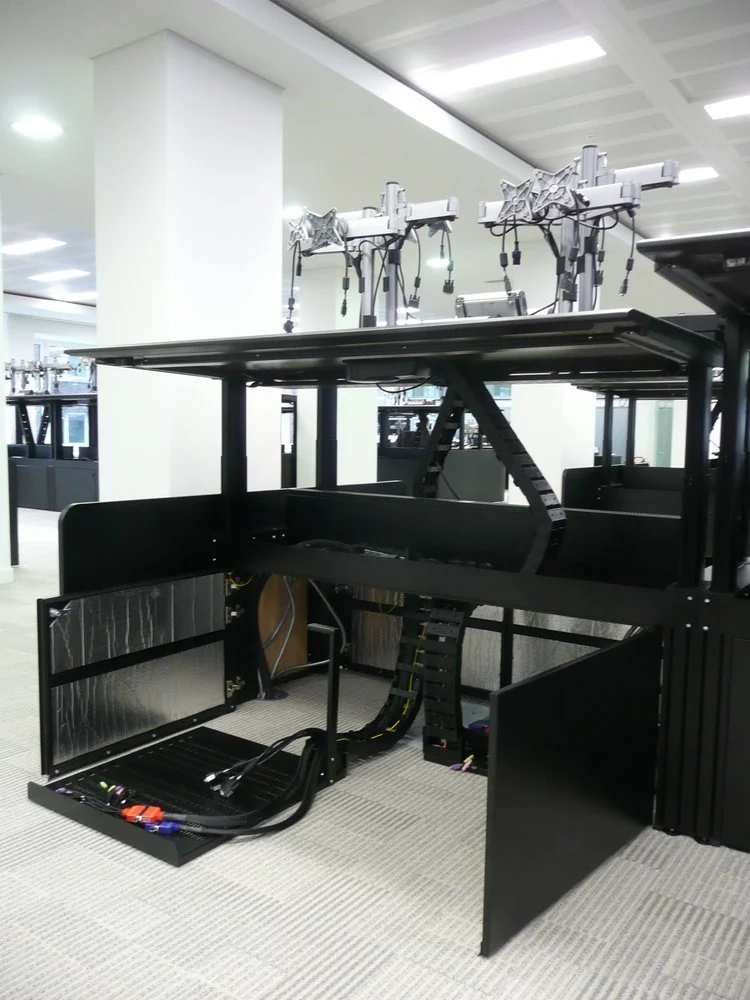

Use cable chains to protect the cables during desk movement.
Test full desk motion after installation – make sure the cable doesn't pull out or stress the connector at full extension.
Use locking DisplayPort connectors to prevent disconnection when the desk moves.

Simplify Multi-Monitor Setups with Daisy Chaining

Daisy chaining is the term used to describe a method of connecting a set of monitors together using a single DisplayPort output from the PC. DisplayPort's Multi-Stream Transport (MST) feature enables this.

Many control room and trading desk setups include 3 to 6 monitors, so daisy chaining helps with cable management. Fewer cables running to the PCs graphics card are required, helping maintain a tidy and efficient workspace. This also negates the need for expensive high end cards with 4-6 DisplayPort connection ports.

The first monitor in the chain must support DisplayPort and MST, likewise with subsequent displays which connect in sequence.

Here are some tips on cable lengths for daisy chaining:

Use active DisplayPort cables if you need longer runs, especially beyond 4-5 metres or for higher resolutions/refresh rates.
Look for VESA-certified DisplayPort cables to ensure compliance with bandwidth and performance standards.
Ensure that all connected monitors support the required resolution and refresh rate, and that signal quality isn't being compromised by distance.
The maximum amount of monitors that can be daisy chained from a single cable depends on resolution and refresh rate

maximum monitor count vs. display resolution, based and DisplayPort 1.2 bandwidth limits
https://www.displayport.org/cables/driving-multiple-displays-from-a-single-displayport-output/

DisplayPort 2.0 and Longer Cable Runs in Control Room and Trading Floor Environments

The introduction of DisplayPort 2.0 brings major advantages for anyone using a multi-monitor setup with high-resolution displays. It has up to 77.4 Gbps of bandwidth, so can support resolutions of 8K resolutions or more. This increased bandwidth might reguire active cables for longer cable runs, especially when using daisy chaining.

Most manufacturers recommend keeping passive cable lengths under 3 metres for reliable performance. For any run longer than that, it's best to use active DisplayPort cables, which boost signal strength and maintain image quality over extended distances.
